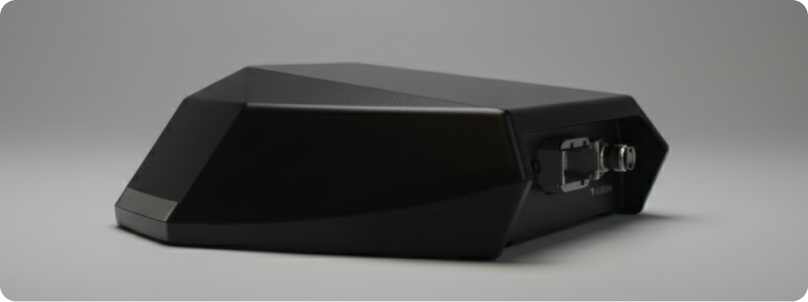

Ultra Smart Antenna

Advanced Connectivity.
Precision Anywhere.

Compatible with both satellite and internet-based correction services, Ultra is the ideal solution for real-time centimeter-level precision without relying on local infrastructure or additional equipment. Connect and start operating.
DatasheetExplore features

When Precision Is Not Optional

What Ultra solves

Ultra eliminates positioning uncertainty and connectivity dependency in environments where failure is not an option.
a green checkmarck

Delivers centimeter-level accuracy within 30 seconds

a green checkmarck

Ultra-fast acquisition and re-acquisition

a green checkmarck

Consistent and smooth positioning you can rely on

a green checkmarck

Plug-and-play integration into industrial systems

Conventional GNSS
Ultra Precision

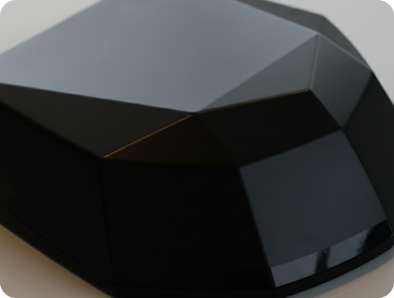

Ultra Smart Antenna

Advanced connectivity and centralized control

Centralized Management

Dashboard for real-time activation, plan management and remote device locking.

NTN Connectivity

Bi-directional satellite communication for telemetry in areas without cellular or internet coverage.

Remote Updates

Over-the-air updates keep your device improving over time with no service visits or downtime.

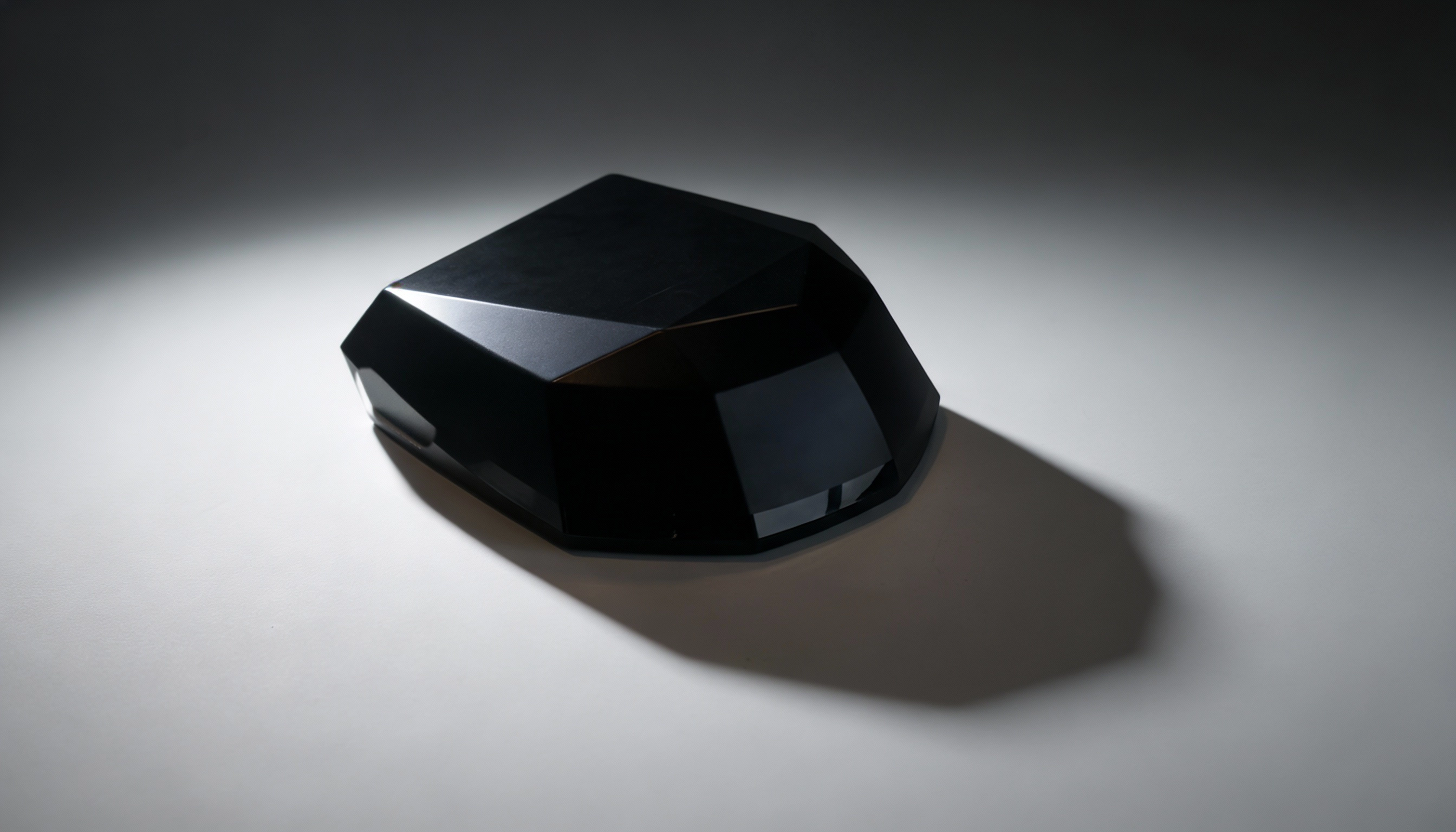

Ultra Smart Antenna

Main Features

High-performance positioning with 0.03 m accuracy powered by multi-band GNSS, seamless sensor fusion and satellite connectivity to deliver stable centimeter-level precision anywhere.

Ultra-Fast
Convergence

Reach centimeter-level precision within 60 seconds so you can start the job sooner and keep moving.

High-Rate
Navigation

Coupled GNSS + IMU sensor fusion delivers smooth, lag-free positioning during fast turns and tight maneuvers.

Terrain and Tilt Compensation

Maintains accuracy on slopes and uneven ground by correcting pitch, roll and terrain effects.

SmoothTrack™
Stability

Provides position smoothing for improved pass-to-pass consistency, delivering fewer positioning jumps and steadier guidance lines.

True
Heading

Dual-antenna technology provides precise vehicle orientation relative to true North for reliable performance, whether moving or stationary.

Over-the-Air
Updates

Remote firmware updates via satellite or cellular keep the system always aligned with the latest features and requirements.

Industrial
Interfaces

Multiple vehicle and sensor interfaces such as serial ports, CAN FD bus and PPS support broad integration across equipment platforms.

Centimeter-Level Accuracy

Provides 0.03 m RMS horizontal precision using triple-band, multi-constellation GNSS.

Satellite
Telemetry

Transmits diagnostics and status alerts over two-way satellite communication when cellular coverage is unavailable.

IP67 Rugged
Design

Dustproof, waterproof and vibration-resistant for harsh agricultural environments.

ULTRA

Technical specifications

ULTRA SMART ANTENNA

Technical specs

Horizontal Accuracy (RMS)

0.03 m*

Pass-to-Pass Accuracy

0.02 m*

Position Repeatability

Year-over-Year

Instead of Acquisition time

< 40 s*

Full-Constellation

GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS

All-Band Coverage

Full support for L1, L2, L5, and L6
(including E6/B3 bands)

High-Grade 6-Axis IMU

Gyroscope: Full-range, ±2000 deg/s
Accelerometer: Full-range, ±16 g

Update Rate

50 Hz (with GNSS + IMU Sensor Fusion)

Ingress Protection

IP67 (Dust-tight and waterproof)

Communication Protocols

NMEA 0183 / NMEA 2000

I/O Communication

3x Serial Ports, 1x CAN FD bus port and UHF Radio**

Input Voltage

+7 to +32 VDC

Current and Power Consumption (Typical)

500 mA, 6 W

Peak Current

0.8 A @ 12 V

*With Soft-Intelligence P2  ** Available only on Ultra+ model

Ultra Smart Antenna

Related  links

Datasheet

Documentation

Technical Papers

Application Notes

Ultra Smart Antenna

One platform, many industries

Repeatable accuracy season after season.

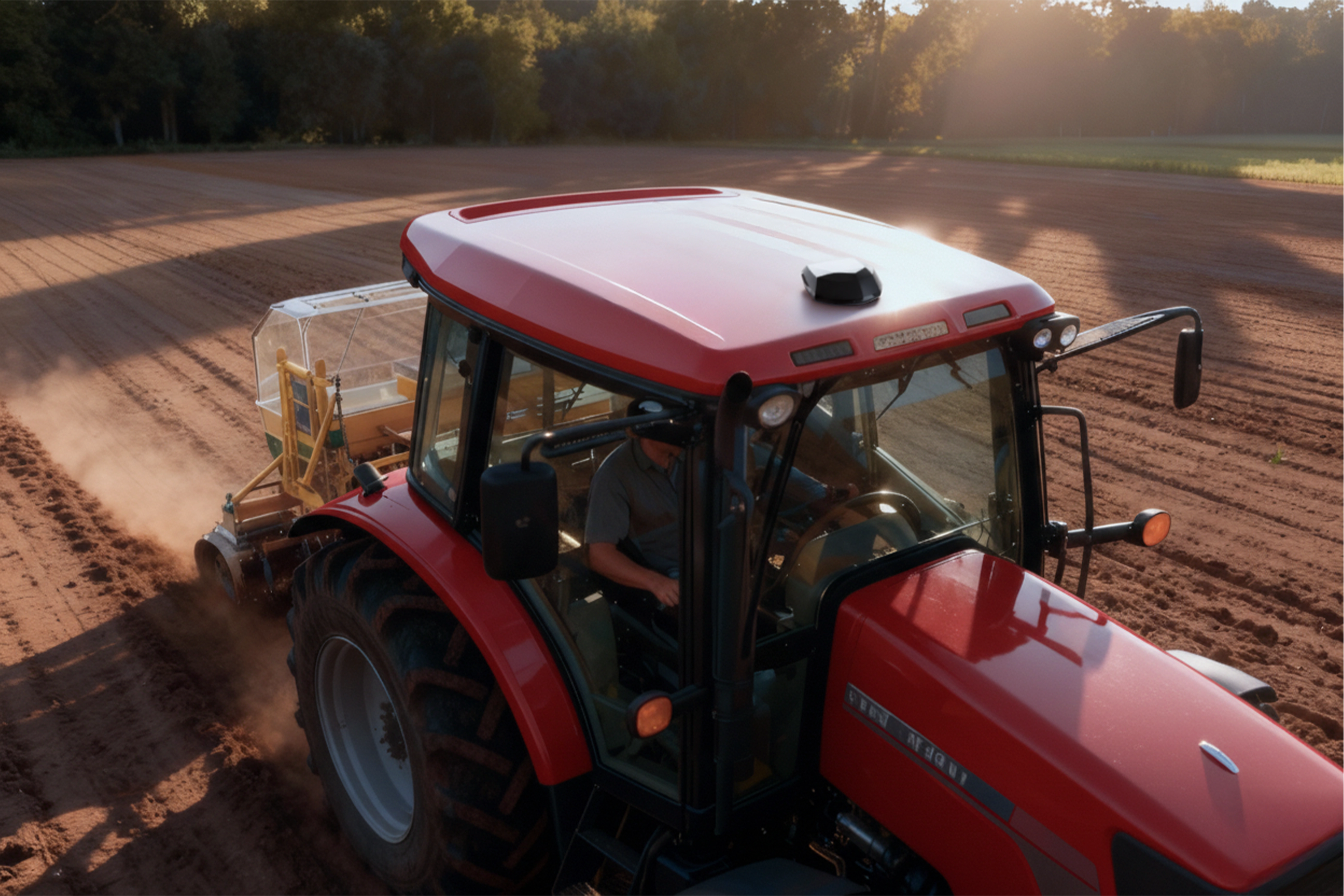

Agriculture

Reliable positioning in harsh, remote environments.

Mining

Real-time navigation with true heading and low latency.

Robotics and
Autonomy

Seamless integration into control systems and fleets.

Industrial
Automation
